| Brand Name : | Xinghe |
| Certification : | ISO CE |
| Model Number : | zlp630 |
| Price : | FOB Tianjin 1700~2300 USD/SET |
| Delivery Time : | 7~10 days after receiving the deposit |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |
As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and knowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.

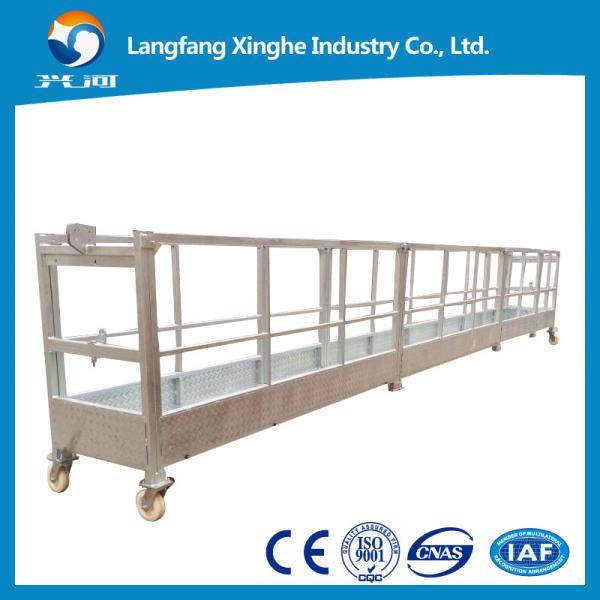

ZLP Suspended platform / Cradle / Gondola
Specification :
1.Type: zlp 630 & zlp800 & zlp 1000
2.Surface finished: Hot galvanized & aluminum alloy
3.Lifting height: 100m , 300m maximum
4.HS Code: 84289090
5.Certificate: ISO9001 & CE
6.Warranty : The whole machinery is for one years, some main components are 6 years
7.We can also customize for you
Technical parameters:
| Model | zlp630 | zlp800 | zlp1000 |
| Material of platform | Steel & Aluminum alloy | ||
| Rate loading capacity | 630kg | 800kg | 1000kg |
| Length of platform | 6m | 7.5m | 7.5 |
| Safety lock | LS30 | ||
| Hoist Model | LTD63 | LTD80 | LTD80(S dirve ) |
| Loading quantity (20 gp) | 9 | 8 | 7 |
| Counter weight | 25kg*40 | 25kg*40 | 25kg*40 |
| Diameter of wire rope | 8.3mm | 8.6mm | 8.6mm |
| Voltage | 220v/380v/415v 50/60hz 3 phase or single phase | ||
Parts List of Complete Suspended Platform / Cradle / Gondola
| NO. | Parts Name | Quantity | Description |
| 1 | Working platform | 3 | The length of work platform include 1m,2m,3m,1.5m,2.5m The work platform can be made in any combination based on customer's requirement . |
| 2 | Hoist | 2 | LTD 63 & LTD80 Surface finished : hot galvanized |
| 3 | Safety lock | 2 | LS30 |
| 4 | Suspension machanism | 2 | Surface finished : hot galvanized |
| 5 | Control panel | 1 | Along with hoist |
| 6 | Limit position switch | 2 | |
| 7 | Limit position plate | 2 | |
| 8 | Wire rope | 100m*4 | 4*31SW- FC- 8.3 &8.6&9.1 |
| 9 | Electric cable | 1 bundle | 3*2.5+2*1.5YC-5 |
| 10 |
|
|
