| Ask Lasest Price | |
| Brand Name : | Xinghe |
| Certification : | ISO CE |
| Model Number : | LTD80 |
| Price : | FOB Tianjin290~360 USD/SET |
| Delivery Time : | 15days after receiving the deposit |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |
Unique anti-rope clamping device, when the rope is clamped, the alarming rings, the motor stops working, so that factor of safety is increased meantime, Inside gear technique(machining-heat treatment-fine machining-surface nitridation-fine grinding) high precision long service life

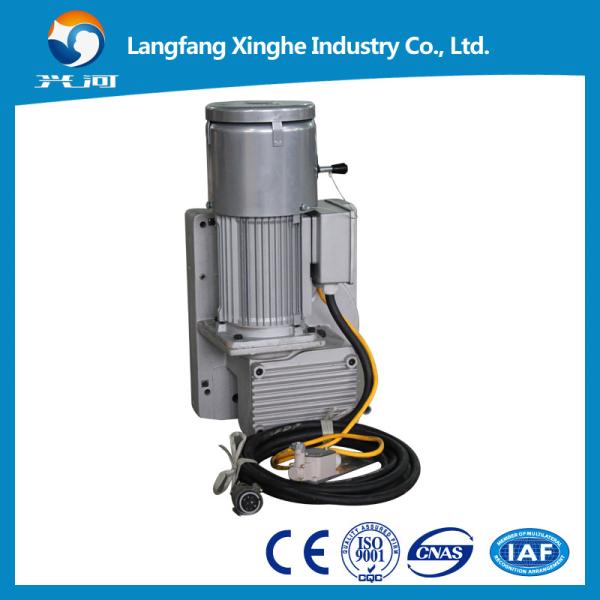

Type LTD80
Rated lift capacity(KN) 8.0
Lifting speed 7~9m/min
Steel wire rope diameter φ8.3mm
Weight 56kg
Motor Type Customization
Power 2.0kW
Voltage 380V/220V/415V 50/60HZ
Speed 1400n/min
braking torque 15N·m
PACKAGE:
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
20GP can load 8 sets with counter weight, 10~12 sets without counter weight
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.
As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and kowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist, safety lock, electric control box and other parts. All these components are made in our factory by our worker, it means stable and competitive quality, delivery and services.
Advantage
1. The product of each order will be strictly tested one by one, the whole machinery will be test by over loading.
2. All of the components are produced by ourselves workers, the quality and the delivery time can be ensured.
3. As a factory, the cost of the goods can be controlled very well, you can get a more competitive price.
4. We can supply the on-line technical guidance, if your order quantity reaches our requirement, we can arrange our technical team to your country to setting equipment.
5. The important components of hoist , the warranty is 5~6 years, for example gear.
|
|
