    suspended working platform / suspended cradle systerm/suspended scaffolding

    Ask Lasest Price
    Brand Name : Xinghe
    Certification : ISO CE
    Model Number : zlp630
    Price : FOB Tianjin 1700~2500 USD/SET
    Delivery Time : 15days after receiving the deposit
    Payment Terms : t/t l/c western union
    Supply Ability : 400sets/month
    • Product Details
    • Company Profile

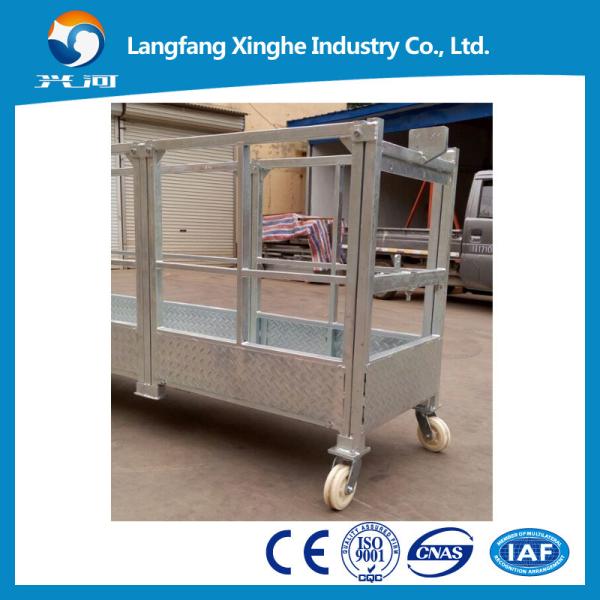

    suspended working platform / suspended cradle systerm/suspended scaffolding

    Our suspended platform machinery helps improve working efficiency, and fast construction at reduced cost. Along with standard platforms we also manufacture Special Suspended Working Platforms with 90°, 45° and Circular shapes. We can also manufacture platforms as per client’s specific requirements.

    1. Working platform, suspension mechanism

    With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working platform is 2.2mm.

    2. Hoist

    With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,the motor stops working, so that factor of safety is increased meantime, maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.


    Item

    ZLP630

    ZLP800

    Rated load

    630kg

    800kg

    Lifting speed

    ~9.5m/min

    ~8.5m/min

    Platform size(L*W*H)

    (3*200mm)*700mm*1180mm

    (3*250mm)*700mm*1180mm

    Suspension Mechanism

    Rated exerted length of front beam

    1.1m~1.5m

    Terrain clearance of front beam

    1.45m~1.75m


    Hoist

    Type

    LTD63

    LTD80

    Motor

    Type

    Customization

    Customization

    Power

    1.5Kw

    2.0Kw

    Voltage

    415V

    415V

    Speed

    1400n/min

    1400n/min

    Braking torque

    15N.M

    15N.M

    Safety lock

    Type

    LS30

    Angle of tilted locking rope

    3°~8°

    Allowable impact force

    30KN

    Quality

    Suspension platform

    300kg

    370kg

    Hoist

    52kg*2

    56kg*2

    Safety lock

    5.5kg*2

    5.5kg*2

    Suspension mechanism

    320kg(not including counter weight)

    320kg(not including counter weight)

    Electricity box

    18kg

    18kg

    Compelet machine

    753kg

    831kg

    Loading quantity

    20GP

    12sets

    40HQ

    30sets

    Wire rope

    Type

    4*31SW+FC-φ8.3 Broken pulling force≥53500N

    4*31SW+FC-φ8.6 Broken pulling force≥62500N

    Cable line

    Type

    3*2.5+2*1.5YC-5(one picec)
