| Brand Name : | Xinghe |
| Certification : | ISO CE |
| Model Number : | zlp630 / zlp800 |
| Price : | FOB Tianjin 1700~2050 USD/SET |
| Delivery Time : | 7~10 days after receiving the deposit |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |

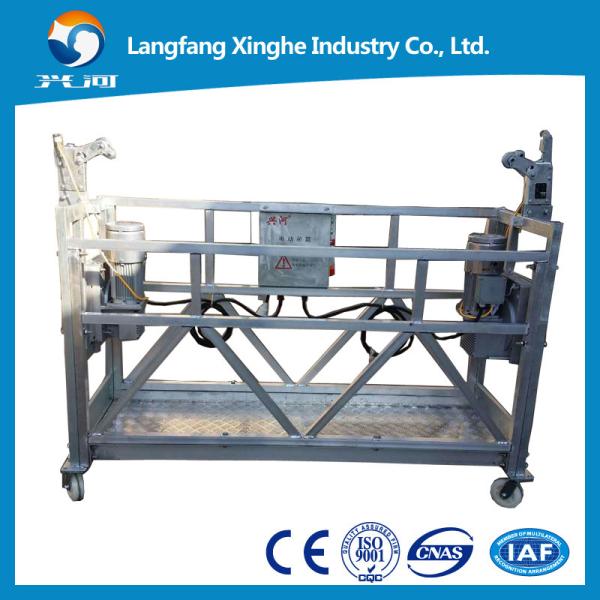

• Suspended platform are designed and constructed in modular form so it can be mounted in any size. • The welding of the support structure of the platform is made of quality steel profiles • The connection of the individual parts of the structure in each unit is made with nuts and bolts. • The powered suspended platform is equipped with wheels for easy movement around the construction site • Along with standard powered suspended platform we also manufacture specialpowered suspended platform with 90°, 45° and Circular shapes. •We can also manufacture suspended platform as per client’s specific requirements
Project
Parts contains:
1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists: LTD63
4. Safety Lock: LS30 tilt proof
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement , cement with steel cover & Iron counterweight
9. Spare parts
Key Points:
1. Max lifting height: 100m;
2. Main models: ZLP630;
3. Types: Painted, hot galvanized, aluminum;
4. Voltage: 220v/380V/415V 50/60HZ 3 phass;
5. Couterweight: Cement, cement with steel cover, Iron-casting counterweight.;
6. H.S Code: 8428909090;
7. Certification: CE & ISO;
8. We can also customize for you.
zlp series suspended platform / cradle / gondola technical parameters
| Item | zlp630 suspended platform | zlp800 suspended platform |
| Rated Loading | 630kg | 800kg |
| Lifting Speed | ~9.5m/min | ~8.5m/min |
Platform size(L*W*H) | (3*2000mm)*690mm*1180mm | (3*2500mm)*690mm*1180mm |
Suspension Mechanism | Rated exerted length of front beam | 1.1m~1.5m |
Terrain clearance of front beam | 1.45m~1.75m |
| Type | LTD63 | LTD80 |
| Motor type | Customization | Customization |
| Power | 2*1.5Kw | 2*2.0Kw |
Voltage | 380v/415v/220v(50/60hz) | 380v/415v/220v(50/60hz) |
Speed | 1400n/min | 1400n/min |
Braking torque | 15N.M | 15N.M |
Safety Lock | ||
| type | LS30 | |
Angle of tilted locking rope | 3°~8° | |
Allowable impact force | 30KN | |
| Quality | ||
Suspension platform | 300kg | 370kg |
Hoist | 52kg*2 | 56kg*2 |
Safety lock | 5.5kg*2 | 5.5kg*2 |
Suspension mechanism | 320kg (not including counter weight) | 320kg (not including counter weight) |
Electricity box | 18kg | 18kg |
|
|
