| Brand Name : | Xinghe |
| Model Number : | ZLP800 |
| Certification : | ISO CE |
| Price : | FOB Tianjin 1700~2500 USD/SET |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |
| Delivery Time : | 7~10 days after receiving the deposit |
LTD80 hoist suspended rope platform ,2.2kw electric winch gondola , lifting cradle for cleaning,maintenance
Main Items : ZLP250 , ZLP500 , ZLP630, ZLP800, ZLP800 s drive(ZLP1000)
Our factory can customized for you based on the building's design:
Product Description:
Main parts for zlp800 / zlp800 s drive (zlp1000)
| Item | ZLP800 | ZLP800 s drive (zlp1000) |
| Rated Loading | 800kgs | 1000kgs |
| Lifting Speed | ~8.5m/min | ~8.3m/min |
| Platform size(L*W*H) | 5m , 6m ,7.5m ,8m or as your requirement | |
| Suspension Mechanism | Rated exerted length of front beam | 1.1m~1.5m |
| Terrain clearance of front beam | 1.45m~1.75m | |
| Hoist | ||
| Type | LTD80 a drive | LTD80 s drive |
| Voltage | 220v, 380v ,415v 50/60 Hz 3 phase | |
| Power | 1.8kw ,2.0kw | 2.2kw |
| Speed | 1400n/min | 1400n/min |
| Safety lock | ||
| type | LS30 | |
| Angle of tilted locking rope | 3°~8° | |
| Allowable impact force | 30KN | |
| Wire rope | ||
| Type | 4*31SW+FC-φ8.3 Broken pulling force≥53500N | 4*31SW+FC-φ8.6 Broken pulling force≥62500N |
| Constrol panel | ||
| Electric parts brand | CHNT | Schneider |
| Conter weight | ||
| Iron cast | Cement | Hot galvnized steel sheet with concrete |
A. Bolt type
B type: Pin type
C: Hoist : LTD80 a drive
Hoist: LTD80 s drive

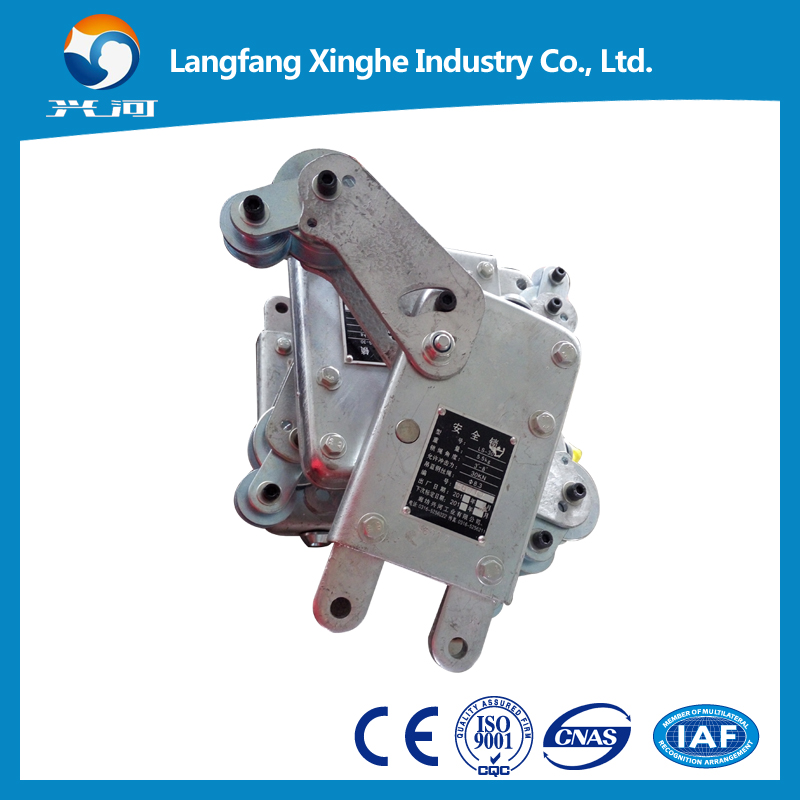

D Safety lock
E. Suspension Mechanism with counter weight

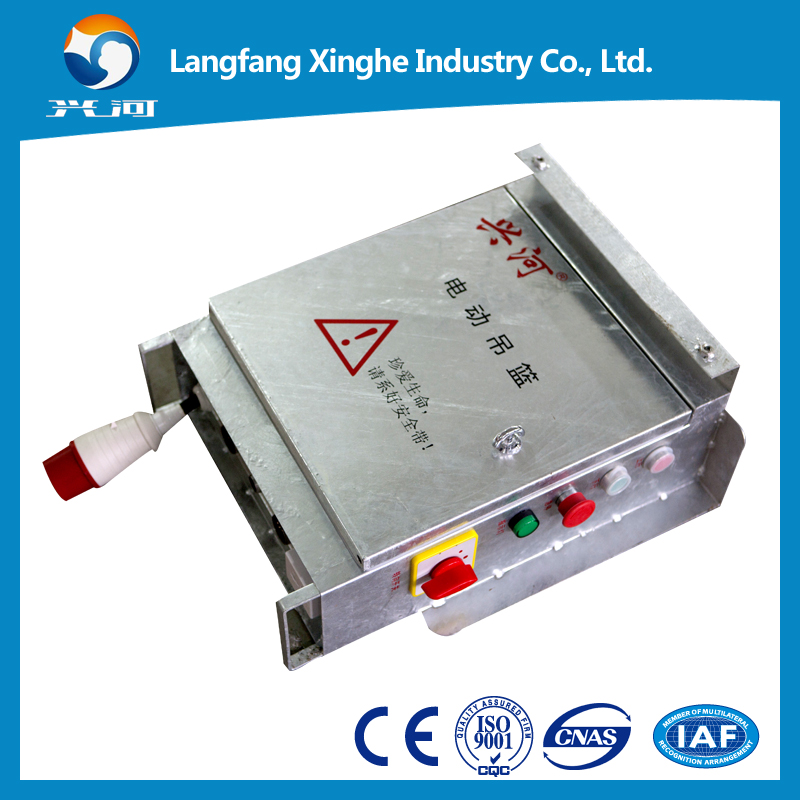

F, Control Panel
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.
Main product include zlp630,zlp800,zlp1000, hoist and other components , with CE and ISO Certificate, our porducts has been exported to Spain, Portugal, Malaysia, Vietnam , Thailand, Philippines,Ukranie, Chile, Peru,Colombia,Honduras etc.
All products are 100% produced by ourselves factory, so the quality and the price can be ensured .
If you are in the market of Suspended platform / gondola / haning scaffolding ,hope we can cooperate in future
