| Model Number : | ZLP800 |
| Certification : | ISO CE |
| Price : | FOB Tianjin 1700~2500 USD/SET |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |
| Delivery Time : | 7~10 days after receiving the deposit |
6m 630kg Painting Electric Hoist Zlp 630 Suspended Platform
Product Introduction of Gondola Suspended Platform
Suspended platform are designed and constructed in modular form,so it could be mounted in any size from 2m to 8m.
Welding of support structure is made of quality steel profiles
Connection of individual parts of structure is made with nuts and bolts in each unit.
Each platform is equipped with wheels for easy movement around construction sites.
Technical parameters of Gondola Suspended Platform
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Height | 100M/150M | |||
| Rated Load(KG) | 500KG | 630KG | 800KG | 1000KG |
| Lifting Speed | 9.6m/min | 9.6m/min | 8.6m/min | 8.6m/min |
| Motor Power(kw) | 2*1.5 | 2*1.5 | 2*1.8 | 2*2.2 |
| Material | Steel or Aluminum Alloy | |||
| Surface Treatment | Painted or Hot Galvanized | |||
| L*W*H(mm) | (2000*2)*690*1180 | (2000*3)*690*1180 | (2500*3)*690*1180 | (2500*3)*690*1180 |
| Diameter of Steel Rope | 8.3mm | 8.3mm | 8.6mm | 9.1mm |
| Safety Lock | LS30 | LS30 | LS30 | LS30 |
| Hoist Model | LTD63 | LTD63 | LTD80 | LTD80S |
| Voltage | 220V/380V/415V | 220V/380V/415V | 220V/380V/415V | 220V/380V/415V |
| Counter weight(kg) optional | 25×30pcs | 25×36pcs | 25×40pcs | 25×44pcs |

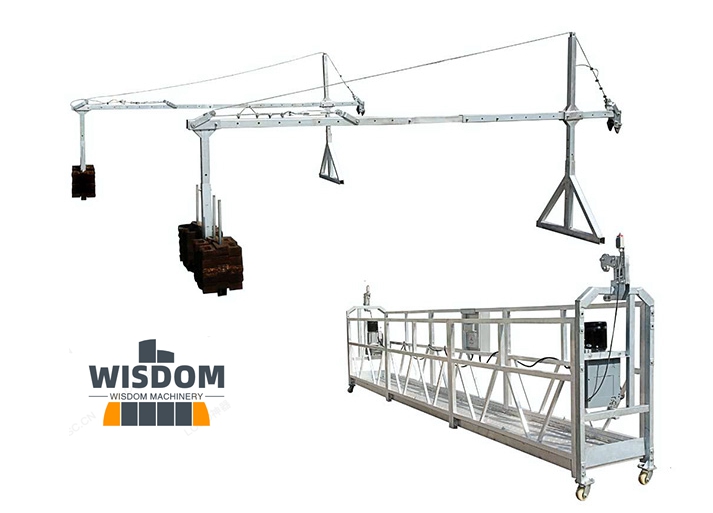

Pictures of Gondola Suspended Platform
|
|
