| Model Number : | ZLP630 / zlp800 |
| Certification : | ISO CE |
| Price : | FOB Tianjin 1700~2500 USD/SET |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |
| Delivery Time : | 7~10 days after receiving the deposit |

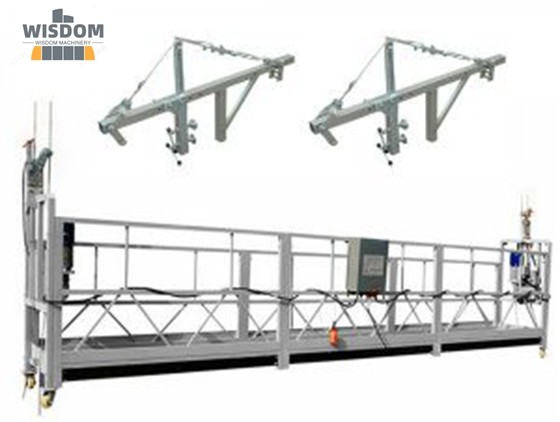

LS30 Gondola Suspended Platform 10m Hoist Electric Suspended Cradle System
| PLATFORM DESCRIPTION |
Product Introduction of Gondola Suspended Platform
Parts contains:
1. Platform(basket): hot galvanized steel / Aluminum
2. Suspension Mechanism: Hot galvanized steel
3. Electric hoists:LTD63
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement & Iron counterweight
9. Spare parts
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PLATFORM DRAWING |
 | PLATFORM DRAWING |
| Suspension Mechanism Drawing |  |
1.Suspension mechanism &Platform
| Surface treatment with hot galvanized craft, the steel is not easy to rust . |
| The service life can be as long as 15 years , more durable than spraying process. |
2.Hoist
| With famous brand of motor , large braking torque |
| Inside gear is 100% copper, the warranty is 5 years. |
| unique anti-rope clamping device , when rope is clamped ,alarming rings, hoist will stop working , safety is increased, maintenance cost is reduced |
| Lubrication oil is 220#industry gear oil.Lubrication oil is 220#industry gear oil. |
3.Safety lock
| The lock cylinder uses special stainless steel , with strong impact resistance, higher |
| toughness,wear resistant, long services life ,safe and reliable |
4.Electric control system
| The electric components uses famouse brand CHNT, SCHNEIDER,quality is guaranteed |
| Perfect circuit design, including leakage protection, current overload protection,emergency braking,operate simply. |
5.Wire rope
| Our supplier is Jiangsu Fasten Steel Cord Co.,Lt---Chinese famous brand"FASTEN" |
6.Cable
| Using national standard cable 2.5*3+1.5*2, using life is longer |
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Products will be package by plywood case for LCL
For the whole container , the goods will be packaged by pallet.
One 20' container can put about 8-10 sets suspended platform
|
|
