| Model Number : | ZLP630 / zlp800 |
| Certification : | ISO CE |
| Price : | FOB Tianjin 1700~2500 USD/SET |
| Payment Terms : | t/t l/c western union |
| Supply Ability : | 400sets/month |
| Delivery Time : | 7~10 days after receiving the deposit |

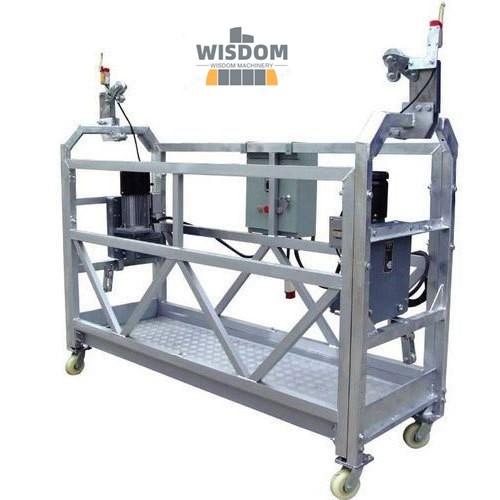

ZLP630 HOT GALVANIZED STEEL SUSPENDED PLATFORM FOR BUILDING CLEANING
1.Introduction of ZLP Suspended Platform:
Suspended platforms (or suspended scaffoldings) are height access systems, which allows working on the whole building surface, with a total security. ... The assembly and the dismantling of this modular height access system are simple and fast ! It allows starting a project in a quick and efficient way.
2.Parts contains of ZLP Suspended Platform:
Platform(basket): hot galvanized steel
Suspension Mechanism: Hot galvanized steel
Electric hoists:LTD63
Safety Lock: LST30
Electric control box: Along with hoists
Steel wire rope: 8.3mm
Electric cable: 3*2.5+2*1.5
Counterweights: Cement & Iron counterweight
Spare parts
3.Parameter of ZLP Suspended Platform
| Specifications | |||
| Type | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 630kg | 800kg | 1000kg |
| Lifting speed | 9.3m/min | 8.5m/min | 8.3m/min |
| Lifting height | 100m | 100m | 100m |
| Hoist | LTD63 | LTD80 | LTD80sdrive |
| Voltage-3Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.5kw*2 | 2kw*2 | 2.2kw*2 |
| Safety Lock | LS30 | LS30 | LS30 |
Electric Control Panel Components | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT |
| Platform Sise (LxWxH) | (2+2+2)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m |
| Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm |
| Special Cable | (3x2.0+2x1.0mm2)100m | (3x2.0+2x1.0mm2 )100m | (3x2.0+2x1.0mm2)100m |
| Counter Weight | 1000kg | 1000kg | 1000kg |
| Qty of 20" Container | 10 sets | 10 sets | 10 sets |
1. Platform(basket): Hot galvanized steel / Aluminum
Features for Aluminum platform:
No need painting or galvanizing on surface;
Oxygen membrane on the surface, rust-proof, anti-corrosion.
Light weight, 65% lighter than the same model of steel one.
Load effiency increased, anti-subversion ability improved.
Easy to install& operate.
Good look, with bright silver gray color
Hot dip galvanized steel platform.
With good outlook;
Anti corrosion.
Lower price than Aluminum platform.
01.Which payment terms can we accept ?
Normally we can accept T/T, L /C, Western Union, sometimes D/P
1.T/T-----30% down payment is required in advance , 70% balance shall be settteled before
shipment or against the copy of original B/L .
2. L/ C----A 100% irrevocable L /C without "soft clause" can be accepted
02.How long will our price be valid ?
1.The rate of Usd dollars-----RMB varies significantly according to
the intemational currency
exchange rates.
2.The cost changed, because of the increasing of labor and material
cost
03.What logistics ways can we work for shipment?
1.Mostly we will go by sea, to all main continents such as South America, UAE, India etc by
container.
2.For neiberhood countries of China, such as Russia, we can ship product by train or road.
3.For light spare parts in urgent demand, we can ship them by international service such as
DHL,TNT, UPS or FEDEX.
|
|
